| Process Parameter | Technical Capability |
|---|---|
| Clamping Force Range | 50 Tons to 1,200 Tons (Precision Servo-Hydraulic & All-Electric) |
| Max Shot Capacity (PS) | 35g to 4,500g (Supported by automated vacuum loading) |
| Dimensional Tolerance | Standard: ±0.1 mm; Precision Grade: Up to ±0.02 mm (Material dependent) |
| Tooling Standards | LKM/DME Bases; P20, NAK80, S136, & H13 Hardened Steel Inserts |
| Surface Finish Standards | SPI Grade (A-1 Mirror to C-3 Matte); VDI 3400 (Texture 12 to 45) |
| Material Processing | Commodity Resins (PP, ABS, PE) & Engineering Grade (PEEK, PPS, PA66+GF) |
| Quality Control | In-process CPK monitoring, CMM verification, & OMM visual inspection |
High-Quality Custom Injection Molding
Get reliable, cost-effective plastic parts tailored to your exact specifications. We offer a wide range of materials and finishes, ensuring your components meet the highest industry standards with efficient lead times.
ISO 9001
Quality Certified
5-10 Day
Typical Lead Time
24hr
Rapid Quoting
No Minimum
Order Quantity (MOQ)
Production-Grade Materials
Precision Injection Molding Materials
From commodity resins to high-performance engineering thermoplastics, Rapid Model provides rigorous material validation and process control for scalable production.
Commodity Plastics (PP / PE)
Low-density, high-toughness resins with excellent chemical resistance. Ideal for cost-sensitive, high-volume consumer goods.
Applications
Optimized through mold flow analysis to ensure structural stability in complex thin-wall designs.
- FMCG packaging & containers
- Non-load-bearing automotive trim
- Disposable laboratory labware
Engineering Thermoplastics (ABS / PC)
Balanced high impact strength and superior dimensional stability. Excellent for secondary processes like painting, plating, or ultrasonic welding.
Applications
Available in medical-grade and flame-retardant (UL94-V0) specialized formulations.
- Consumer electronics housing
- Medical device enclosures
- Structural appliance components
Nylon & Reinforced Resins (PA / GF)
High mechanical strength and abrasion resistance. Glass fiber (GF) reinforcement significantly increases heat deflection temperatures (HDT).
Applications
Metal replacement for lightweighting in demanding mechanical environments.
- Under-the-hood automotive parts
- Power tool structural frames
- Industrial-grade fasteners
Crystalline Plastics (POM / PBT)
Extremely low coefficient of friction and excellent fatigue resistance. The primary choice for precision transmission mechanisms.
Applications
Ensures long-term tolerance stability for high-precision gear and bearing assemblies.
- Precision gear trains
- Fuel system connectors
- Mechanical switch components
Thermoplastic Elastomers (TPE / TPU)
Combines rubber-like flexibility with thermoplastic processability. Supports overmolding for soft-touch ergonomic integration.
Applications
Enhanced haptics and sealing performance with UV and aging resistance.
- Ergonomic hand grips
- Waterproof gaskets & seals
- Wearable device accessories
High-Performance Resins (PEEK / PPS)
Maintains mechanical integrity under extreme thermal and corrosive conditions. Exceptional dielectric properties for electronics.
Applications
Tailored for critical aerospace, semiconductor, and oil & gas environments.
- Aerospace fuel system hardware
- Semiconductor wafer carriers
- High-temp sensor housings
Exhibition Of Injection Molded Parts
Our Injection Molded Parts
We offer customized injection molding services with strict confidentiality to protect customer privacy. No minimum order quantity required. Feel free to contact us for inquiries.
Grille Assembly
Vehicle Interior Trim
Rugged Handheld Device Housing
Battery Box
Smart Projector
Speaker Grille Frame
Fan Grille
Console Section
Precision Plastic Solutions
Custom Injection Molding Services
From rapid prototyping to high-volume production, we deliver high-tolerance plastic components using advanced molding techniques and rigorous quality control.
Custom Plastic Molding
Versatile molding solutions for complex geometries. We handle a vast array of engineering-grade resins to meet your specific mechanical and aesthetic requirements.
- Materials: ABS, PC, PEEK, Nylon (PA6/66), & TPE
- Scientific molding process for part consistency
- Multi-cavity high-volume production runs
Overmolding
Enhance ergonomics and durability by molding a soft elastomer over a rigid plastic base. Perfect for vibration dampening and multi-color designs.
- Strong mechanical and chemical bonding
- Improved grip and impact resistance
- Ideal for handheld devices and medical tools
Insert Molding
Integrate metal fasteners, threaded inserts, or electronic components directly into the molded part to reduce assembly time and improve structural strength.
- Eliminates secondary post-molding assembly
- High-precision placement of metal inserts
- Enhanced part reliability and pull-out resistance
Mold Design & Tooling
In-house mold making utilizing CNC machining and EDM. We design tools for longevity, focusing on cooling efficiency and gate placement for flawless finishes.
- Tooling: Aluminum, P20, & NAK80 Steel
- DFM (Design for Manufacturing) feedback included
- Support for family molds and hot runner systems
Precision Micro Molding
Specialized equipment for extremely small, high-tolerance components often required in the medical, fiber optic, and micro-electronic industries.
- Ultra-tight tolerances down to ±0.01mm
- Expertise in thin-wall molding (up to 0.3mm)
- Cleanroom production environment available
Finishing & Assembly
Complete turnkey solutions including decorative finishes and secondary operations to deliver retail-ready or assembly-line ready components.
- Sonic welding, pad printing, and painting
- EMI/RFI shielding for electronic housings
- Kitting and custom packaging solutions
Injection Molding Case Studies
High-Performance Tooling and Production
- Automotive Components
- Medical Engineering
- Industrial Equipment
- Consumer Electronics
Automotive Interior
Overmolded Interior Door Handles
Project Focus: Tactile Ergonomics & Structural Integrity
PROCESS
Two-Shot Overmolding
MATERIALS
PC/ABS + TPE
ANNUAL QTY
50,000+ Units
The Engineering Challenge
A Tier-1 automotive supplier required a door handle that combined the structural rigidity of a resin frame with a soft-touch grip for the end user. The main challenge was ensuring a permanent chemical bond between the two materials to prevent peeling over the vehicle's lifespan.
- Preventing weld lines on visible "A-class" surfaces.
- Meeting strict UV resistance and heat aging standards.
- Achieving perfect alignment between the soft and hard plastic shots.
Our Solution
We implemented a rotary two-shot molding process. By controlling the melt temperature and injection speed precisely, we achieved a seamless transition between the PC/ABS substrate and the TPE overmold.
- Tooling: High-grade NAK80 steel with mirror polishing.
- Gating: Valve gate system to eliminate vestige marks.
- QC: Automated vision inspection for flash and color consistency.
Medical / Healthcare

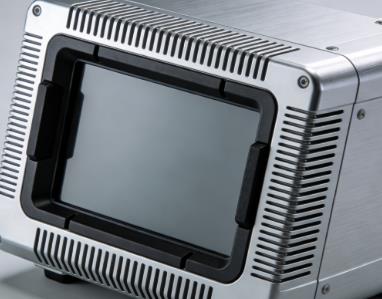

Precision Diagnostic Device Housing
Focus: Sterilization Compatibility & Tight Tolerances
TECHNOLOGY
Cleanroom Injection Molding
MATERIAL
Medical Grade PEEK / PC
TOLERANCE
±0.025mm
Technical Challenge
A medical startup needed a housing for a handheld blood analyzer. The part required high chemical resistance to harsh disinfectants and extremely tight tolerances to ensure internal optical sensors remained perfectly aligned.
- Thin-wall sections that must remain rigid.
- Zero tolerance for particulate contamination during molding.
- Multiple internal snap-fits for screwless assembly.
Technical Execution
Produced in our ISO Class 7 cleanroom, we utilized an all-electric injection machine to minimize oil-based contaminants. We performed Moldflow analysis to optimize gate locations and reduce internal stresses that cause warping.
- Optimization: Moldflow analysis to balance fill pressure.
- Cooling: Conformal cooling channels to prevent part distortion.
- Validation: 100% dimensional check on critical sensor mounting points.
Industrial Tooling

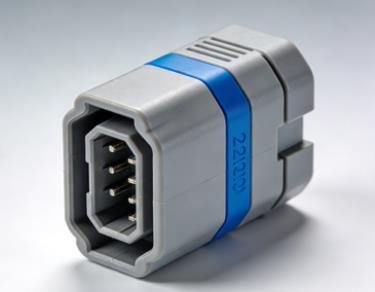

Insert-Molded Power Connectors
Focus: Metal-to-Plastic Integration & Durability
PROCESS
Vertical Insert Molding
MATERIAL
Nylon 66 + 30% Glass Fiber
INSERT TYPE
Brass Bushings & Terminals
Engineering Challenge
An industrial power company needed heavy-duty connectors for outdoor electrical hubs. The metal terminals had to be perfectly centered during injection to ensure electrical insulation and structural support under heavy cable loads.
- Supporting heavy copper inserts during the high-pressure injection.
- Avoiding sink marks on thick wall sections.
- Achieving an IP67 waterproof seal around the metal inserts.
Our Solution
We used vertical injection molding machines with a rotary table to allow for safe and efficient insert loading. The mold was designed with specialized mechanical shut-offs to clamp the inserts firmly during the cycle.
- Material: Glass-filled Nylon for high thermal stability.
- Tooling: Hardened S136 steel to withstand abrasive glass fibers.
- Efficiency: Dual-shuttle system to maintain continuous production.
Consumer Electronics

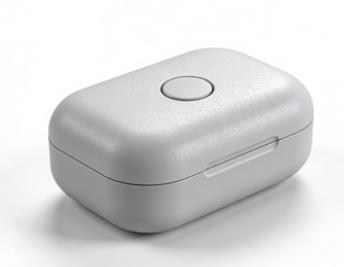

High-Gloss TWS Charging Case
Focus: Cosmetic Perfection & Hinge Mechanics
TECHNOLOGY
High-Cycle Precision Molding
FINISH
SPI-A1 Mirror Polish
MATERIAL
High-Impact ABS / PC
Technical Challenge
A consumer electronics brand required a charging case with a "piano-black" finish. The challenge was molding a curved surface without any visible sink marks or gate scars while maintaining a 0.5mm wall thickness for internal component space.
- Eliminating flow lines and gas traps on glossy surfaces.
- Precision molding of the integrated hinge mechanism.
- Managing part shrinkage to ensure a perfectly flush fit with the lid.
Precision Engineering
We used a sub-gate design located in a non-visible area. To achieve the mirror finish, we utilized a specialized rapid heating and cooling system (RHCM) for the mold to ensure a perfect surface replication without weld lines.
- Material: Low-shrinkage ABS for dimensional stability.
- Handling: Robot-arm extraction with soft-touch end-effectors to prevent scratching.
- Assembly: Ultrasonic welding of internal battery cradles.
Technical Specifications
Injection Molding Capabilities
Our facility operates a range of precision all-electric and hydraulic injection machines, supporting high-volume production with advanced tooling standards and automated material handling.
Our injection molding factory
Our Factory
We are your professional partner. Communicate with our engineers to solve your project challenges.
Injection molding engineer

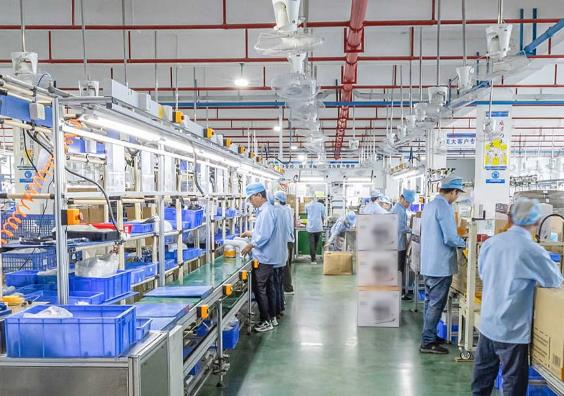

Assembly and production workshop
Injection molding engineer
Injection molding workshop
Client Testimonials
Project feedback from global partners
See what our global clients say about us, and thank them for their support.
★★★★★
T1 samples arrived 3 days ahead of schedule. Shrinkage on the PC/ABS parts was perfectly managed, and the fitment is spot on. The MT-11010 texture is uniform across all surfaces. Moving straight to mass production.
★★★★☆
Professional engineering support. Their DFM report caught a wall thickness issue that would have caused major sinking. Logistics had a slight delay at customs, but the part precision is top-tier.
★★★★★
Incredibly reliable rapid tooling. 15 days from CAD to parts in hand for our product launch. We had to move a gate location last minute, and their team handled the revision flawlessly.
★★★★★
Exceptional insert molding work. The metal threaded inserts are perfectly centered and the bond with the Nylon 66 is incredibly strong. 3 months into a high-volume run with near-zero reject rates.
★★★★☆
The overmolding shut-off lines are extremely clean. TPE grip feels high-end with no flash. Communication was good, though I wish the initial quote breakdown came a bit faster. Overall, very capable.
★★★★★
Consistency is king for us. Batch-to-batch repeatability has been within ±0.05mm, which is critical for our automated assembly line. Robust packaging for long-distance freight.
★★★★★
Very impressed with the tool life cycle analysis provided during quoting. We opted for the hardened steel mold and it’s already paid for itself in reduced maintenance and high cycle speeds.
★★★★☆
The SPI A-1 mirror finish is world-class. No visible flow lines even on the high-gloss black parts. The tooling price was competitive, though shipping costs were high this quarter. Overall satisfied.
Simple and fast
Efficient collaboration process
Our streamlined and efficient workflow eliminates unnecessary time costs and enables your project to move forward quickly and smoothly.
01
Quote & DFM
Upload STP/DXF files for instant pricing and manufacturability analysis.
02
Design Optimization
Our engineers refine the design for cost-efficiency and production speed.
03
Precision Fabrication
Advanced equipment and process optimization.
04
Quality Validation
CMM verification and ISO 9001 standardized inspection protocols.
05
Finish & Delivery
Final surface finishing, assembly, and global logistical dispatch.
FAQ
Addressing Your Concerns
-
What is Injection Molding?
Injection molding is a manufacturing process where molten plastic is injected into a mold cavity under high pressure. Once the material cools and solidifies, it forms a precise, repeatable part. It is the industry standard for producing complex plastic components with high consistency.
-
What materials do you work with?
We use a wide range of engineering-grade thermoplastics, including ABS, Polypropylene (PP), Polyethylene (PE), Polycarbonate (PC), Nylon (PA), and PVC. Material selection is based on your specific requirements for mechanical strength, heat resistance, and chemical durability.
-
What are the key advantages of Injection Molding?
High Efficiency: Rapid cycle times make it ideal for scaling production.
Complex Geometries: Capable of producing intricate shapes with tight tolerances.
Superior Surface Finish: Parts often require little to no post-processing.
Cost-Effective: Low per-unit costs for high-volume production runs.
Versatility: Vast options for material properties, additives, and custom colors.
-
Is Injection Molding suitable for low-volume or prototyping?
Yes, though it is traditionally more cost-effective for medium-to-large volumes due to initial tooling costs. For rapid prototypes or extremely small batches, we often suggest 3D Printing or CNC Machining as faster, tool-less alternatives.
-
What are the typical tolerances for Rapid Model parts?
Tolerances vary depending on material shrink rates and part geometry, but we typically hold between ±0.1 mm and ±0.5 mm. If your project requires higher precision, we can achieve tighter specs through optimized mold design or secondary CNC machining.
-
How do you ensure part quality?
Quality is built into every stage of our process—from mold flow analysis and material validation to real-time process monitoring. Our engineering team proactively manages variables to prevent common defects like warping, sink marks, or flash, ensuring every part meets your specifications.
-
What surface finishes are available?
We offer a variety of finishes to meet both functional and aesthetic needs, including high-gloss, matte, industrial textures (VDI/MT), and custom patterns. We also provide secondary services like painting, silk-screening, and electroplating.
