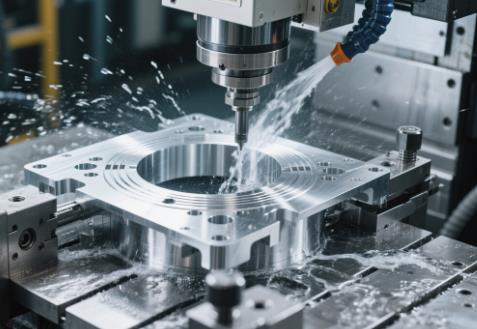

Thin-wall machining is a special process technology in the field of CNC machining for precision manufacturing of parts with relatively thin wall thickness and insufficient structural rigidity. According to international manufacturing standards, when the wall thickness of a part is less than 2 mm or the height-to-thickness ratio (H/T) is greater than 10:1, it can be classified as a thin-wall part. Such parts are widely used in aerospace, medical devices, precision instruments and other fields, and their machining quality directly affects the final performance and service life of the product.
From the perspective of material mechanics, the stiffness of thin-wall parts is proportional to the cube of their wall thickness, which means that when the wall thickness is halved, the stiffness of the part will drop to one-eighth of the original. This geometric characteristic makes thin-wall parts extremely prone to elastic deformation, vibration, and dimensional deviation during the machining process, placing extremely high demands on the machining process. In modern manufacturing, the proportion of thin-wall parts is increasing year by year, reaching more than 30% of the total structural parts in the aerospace field, highlighting the importance of mastering thin-wall machining technology.
Core Technical Challenges in Thin-Wall Machining
The technical challenges of thin-wall machining mainly stem from the inherent lack of workpiece stiffness, which leads to various complex physical phenomena during the machining process. First, the action of cutting force will cause workpiece deformation. According to our experimental data, when milling 0.8mm thick aluminum alloy thin walls, the instantaneous deformation caused by cutting force can reach 0.05-0.12mm, seriously affecting dimensional accuracy. Second, the thermal deformation caused by cutting heat cannot be ignored. During continuous machining, when the local temperature of the workpiece increases by 60-80°C, the dimensional change caused by thermal expansion can reach more than 0.1mm.
Vibration and Chatter Problems
Thin-wall parts are prone to forced vibration and self-excited vibration (chatter) during machining. When the cutting force frequency is close to the natural frequency of the workpiece, resonance will occur, which not only affects the surface quality but may also cause tool damage or even workpiece scrap. Our research shows that using dynamic stability analysis technology can predict and avoid chatter occurrence, controlling the vibration amplitude within 5μm.
Residual Stress and Deformation Control
The residual stress generated during the machining process is a key factor leading to later deformation of the workpiece. Research on titanium alloy thin-wall parts found that the residual tensile stress on the workpiece surface after rough machining can reach 200-300MPa. If appropriate stress relief treatment is not performed, the long-term dimensional stability of the parts after finishing will be difficult to guarantee.
Basic Principles of Thin-Wall Machining Process Design
Successful thin-wall machining begins with scientific and reasonable process design. Based on our years of engineering practice experience, we have summarized the following core design principles:
Systematic Stiffness Enhancement Principle
Systematically improve the overall stiffness of the process system by optimizing part structure design and machining strategies. Specific measures include: rationally arranging reinforcing ribs at the part design stage, dividing large planes into multiple small areas; adopting stepped allowance distribution during process design, retaining temporary support structures; using vacuum chucks or special flexible fixtures in fixture design to achieve uniform distribution of clamping force. Practice has proven that these measures can reduce machining deformation by more than 40%.
Multi-stage Machining Strategy
Adopt a multi-stage process route of "rough machining - stress relief - semi-finishing - finishing". In the rough machining stage, uniform allowance is reserved (usually 0.5-1mm), followed by vibration aging or low-temperature annealing treatment to eliminate residual stress, and finally finishing to the final size. This strategy can improve dimensional accuracy stability by more than 35%.
Symmetric and Balanced Machining Principle
Follow symmetrical and balanced machining path planning to avoid stress redistribution imbalance caused by uneven material removal. For frame-type thin-wall parts, a strategy of alternately machining opposite surfaces should be adopted; for cavity-type parts, a layered circular cutting method should be used to maintain relative balance of cutting forces.
Systematic Optimization Methods for Cutting Parameters
The optimization of cutting parameters for thin-wall machining is a multi-objective optimization process that requires comprehensive consideration of multiple factors such as machining efficiency, surface quality, and deformation control. Based on a large amount of process test data, we have established the following parameter optimization system:
| Material Type | Recommended Cutting Speed (m/min) | Feed per Tooth (mm/z) | Axial Depth of Cut (mm) | Radial Depth of Cut (% Tool Diameter) |
|---|---|---|---|---|
| Aluminum Alloy (6061) | 300-400 | 0.08-0.15 | 0.3-0.8 | 20-40 |
| Titanium Alloy (TC4) | 40-60 | 0.05-0.12 | 0.2-0.5 | 15-30 |
| Stainless Steel (304) | 80-120 | 0.06-0.10 | 0.3-0.6 | 20-35 |
The core idea of parameter optimization is to adopt a cutting strategy of "high speed, small depth of cut, and fast feed". High speed can reduce the cutting force per tooth, small depth of cut can effectively control the total cutting force, and appropriate fast feed helps avoid extrusion friction caused by too small cutting thickness. For different material characteristics, parameter combinations need to be adjusted accordingly. For example, when machining aluminum alloys, special attention should be paid to the prevention of built-up edges, while when machining titanium alloys, the control of cutting temperature needs to be focused on.
Heat and Stress Control Technology During Machining
The thermal-mechanical coupling effect is the fundamental cause of deformation in thin-wall machining. Effective thermal management and stress control are key to ensuring machining accuracy. We have developed a complete set of control solutions:

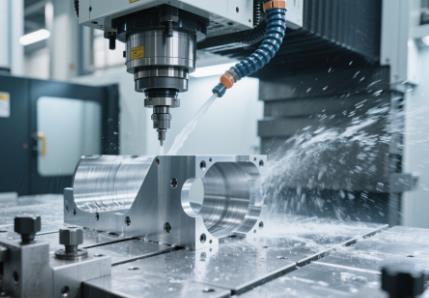

Intelligent Cooling Technology
Select the optimal cooling method according to material characteristics. For materials with good thermal conductivity such as aluminum alloys, minimum quantity lubrication (MQL) technology is recommended to ensure lubrication effect while avoiding rapid cooling and deformation of the workpiece; for difficult-to-machine materials such as titanium alloys, high-pressure cooling (70-100bar) is used to ensure that the coolant can reach the cutting area and control the cutting temperature below 300°C.
Machining Path Optimization
Distribute heat accumulation through reasonable tool path planning. Adopt a skip cutting strategy to avoid continuous machining in the same area; use spiral interpolation to machine cavities to maintain the stability of the cutting process; for long boundary machining, use segmented alternate entry methods to prevent local overheating.
Online Monitoring and Compensation
Integrate temperature sensors and force sensors to monitor the machining status in real time. When abnormal temperature rise or cutting force fluctuation is detected, the system automatically adjusts cutting parameters or tool paths. Our application data shows that this active control strategy can reduce thermal deformation by more than 50%.
Optimization Selection and Usage Strategy of Tool System
The reasonable selection and use of tools have a decisive impact on the quality of thin-wall machining. Based on different machining needs, we have established a specialized tool selection system:
Tool Geometric Parameter Optimization
Priority is given to sharp edge designs with large helix angles (35-45°) and large rake angles (12-20°). This design can significantly reduce cutting force and cutting heat. For thin-wall milling, tools with unequal tooth pitch are recommended to effectively suppress vibration. The tool diameter should be selected according to the structural characteristics of the workpiece. Generally, the ratio of tool diameter to minimum machining radius should be controlled below 0.7.
Tool Material and Coating Technology
Select special tool coatings for different machining materials. Diamond coating is recommended for aluminum alloy machining, TiAlN coating is suitable for titanium alloy machining, and AlCrN coating is more suitable for stainless steel machining. Appropriate coating selection can extend tool life by 2-3 times.
Tool Usage Strategy
Establish a strict tool life management system and set tool replacement cycles based on cutting length or machining time. For finishing processes, it is recommended to use new tools or tools with intact edges to ensure cutting stability. At the same time, use a tool presetter to accurately measure tool dimensions and control clamping errors within 0.005mm.
Active Control Technology for Cutting Force and Vibration
Cutting force control is the core technology of thin-wall machining. We have developed a multi-level control strategy:
Cutting Force Modeling and Prediction
Establish a cutting force prediction model based on mechanical principles, optimize cutting parameters through simulation analysis, and control the maximum cutting force within the safe range of workpiece stiffness. For typical thin-wall structures, it is recommended to limit the single-point cutting force to below 50N.
Vibration Suppression Technology
Adopt an active vibration control system, and apply control forces in opposite phases in real time through piezoelectric actuators or hydraulic servo mechanisms to effectively suppress machining vibration. Our tests show that this active control can reduce vibration amplitude by 60-80%.
Dynamic Stiffness Enhancement
Improve the dynamic stiffness of the process system by integrating damping materials into the fixture system or using smart materials such as magnetorheological fluid. This measure is particularly suitable for suppressing low-frequency vibrations and can increase the system damping ratio to above 0.1.
Machining Strategy Planning for Thin-Wall Parts
Scientific machining strategy planning is the prerequisite for ensuring successful machining of thin-wall parts. We divide them into three categories according to the structural characteristics of the parts and formulate corresponding machining strategies:
Frame-Type Thin-Wall Part Machining
Adopt a strategy of "from inside to outside, alternate machining". First machine internal features, then machine external contours; for symmetrical structures, alternately machine opposite surfaces to maintain stress balance. The machining path uses smooth continuous spline curves to avoid impact vibration caused by sharp corner turns.
Shell-Type Thin-Wall Part Machining
Follow the principle of "layered circular cutting, uniform removal". Divide the entire machining depth into multiple thin layers, each layer uses circumferential cutting to maintain constant radial cutting force. In the finishing stage, use small-step contour machining to ensure consistency of surface quality.
Complex Surface Thin-Wall Machining
Use adaptive machining technology to dynamically adjust cutting parameters according to curvature changes. Automatically reduce feed speed in areas with small radius of curvature to avoid overcutting or vibration caused by sudden direction changes. At the same time, use five-axis linkage machining to maintain the best cutting conditions by optimizing the tool posture.
Post-Machining Treatment and Inspection Key Points
The treatment and inspection after the completion of thin-wall part machining are equally crucial and directly related to the final quality of the part:
Stress Relief Treatment
Perform stress relief treatment immediately after machining to prevent aging deformation. Vibration aging technology is recommended to eliminate residual stress through the resonance principle. The dimensional stability of the workpiece after treatment can be improved by more than 40%. For parts with high precision requirements, a low-temperature annealing process can be added between rough machining and finishing.
Precision Inspection Scheme
Establish a complete inspection system, including three levels: online inspection, inter-process inspection and final inspection. Online inspection mainly monitors key dimensions and uses machine tool probes to achieve dimensional control during the machining process; inter-process inspection focuses on deformation trends and uses coordinate measuring machines to obtain comprehensive geometric data; final inspection uses advanced measurement technologies such as white light scanning to obtain complete surface morphology information.
Storage and Transportation Specifications
Develop special storage and transportation specifications for thin-wall parts. When storing, use special fixtures to support key parts to avoid deformation under own weight; during transportation, anti-vibration measures must be taken to prevent damage caused by external impact. At the same time, strictly control the ambient temperature and humidity to prevent dimensional changes caused by thermal expansion and contraction.
Energy Saving and Sustainable Development in Thin-Wall Machining
In modern manufacturing, thin-wall machining technology is not only related to product quality but also closely related to resource conservation and environmental protection:
Energy Efficiency Optimization
Achieve energy consumption reduction through process optimization. Research shows that using high-speed machining technology can save 15-20% energy compared with traditional machining, while improving machining efficiency by more than 30%. Optimizing air-cutting paths and reducing invalid movements of machine tools can further reduce energy consumption by 8-12%.
Green Manufacturing Technology
Promote the use of green machining technologies such as minimum quantity lubrication (MQL) and cryogenic cooling to reduce cutting fluid usage by more than 80%. Use long-life tools and regrindable tools to reduce solid waste generation. At the same time, establish a cutting fluid recycling system to achieve resource recycling.
Full Life Cycle Assessment
Evaluate the environmental benefits of thin-wall machining from the perspective of the entire product life cycle. Lightweight design not only reduces material consumption but also significantly reduces energy consumption during the use phase. Taking aerospace as an example, reducing the structural weight by 1kg can save about $3,000 in fuel costs over the entire life cycle and significantly reduce carbon dioxide emissions.
Future Development Trends
Future thin-wall machining technology will develop towards intelligence, digitalization and greening. Digital twin-based machining process simulation will achieve accurate prediction of process parameters, intelligent adaptive control systems will greatly improve machining stability, and the application of new environmentally friendly machining technologies will further promote the sustainable development of manufacturing. Mastering these advanced thin-wall machining technologies is of great significance for enhancing the core competitiveness of enterprises and promoting the transformation and upgrading of manufacturing.
For manufacturers looking to improve their thin-wall machining capabilities, professional CNC machining services with expertise in this area can provide valuable technical support and process optimization recommendations.
Reference
For further technical details and research findings, please refer to: Advanced thin-wall machining technologies and applications (opens in new window).
