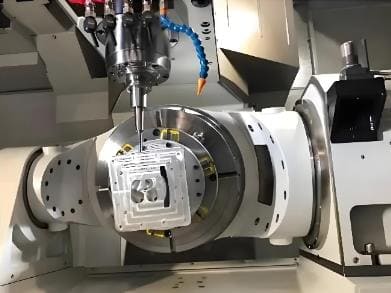

Custom 5‑axis CNC machining service, typical delivery of prototypes within one week, fastest turnaround in just three days. Certified to ISO 9001:2015 and ISO 13485. Tolerances down to ±0.01 mm; for higher requirements please advise our engineers.
Online CNC Quote
Comprehensive 5-axis machining solutions for complex part manufacturing
Rapid prototyping services for product development and research applications with quick turnaround times.
Online CNC Quote
Manufacturing of intricate parts with complex surfaces, contours, and tight tolerance requirements.
Online CNC Quote
Bespoke machining services tailored to your specific requirements and challenging applications.
Online CNC Quoteunderstanding different machining processes is essential to correctly choose the right five-axis machining solution

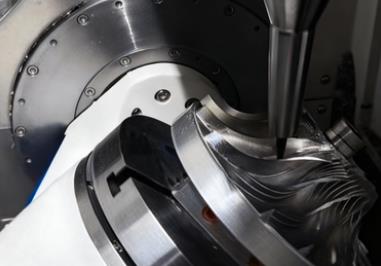

3+2 axis machining, also known as five-axis positioning machining, refers to a process where the machine performs operations along three linear axes (X, Y, Z) while using two rotary axes (usually A, B, or C) to position the workpiece. The workpiece remains stationary during cutting, and the tool moves along the three linear axes to complete the machining. This process is suitable for step-by-step machining of complex angled surfaces or multi-faceted parts, offering high positioning accuracy and simplified fixture design.

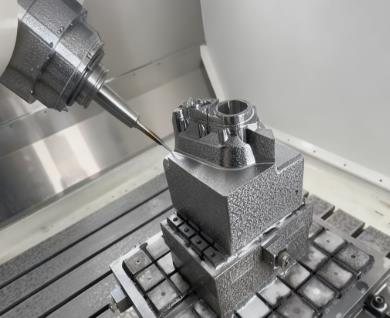

Five-axis simultaneous machining involves the coordinated movement of three linear axes and two rotary axes simultaneously. The tool can approach the workpiece surface from almost any angle, enabling continuous machining of complex surfaces and angled holes. This process allows multi-sided machining in a single setup, significantly improving machining efficiency and reducing errors caused by repeated repositioning.
| Category | Parameter | Description |
|---|---|---|
| Precision tolerances | ±0.01 mm (±0.0004 in) | High-precision capability for demanding parts |
| Maximum Machining Size | 1500 × 800 × 600 mm | Suitable for medium to large workpieces |
| Surface Roughness | Ra ≥ 125 μin | Produces smooth, high-quality surfaces |
| Inspection Equipment | Coordinate Measuring Machine (CMM), Laser Scanner | Ensures dimensional and geometric accuracy |
| Production Capacity | 20+ Five-Axis Machining Centers | Supports rapid delivery for prototypes and production orders |
Rapid Model provide nine types of surface treatment methods.
Characteristics: High-speed abrasive particles are blasted onto the surface to remove rust, oxide layers, old coatings, and contaminants.
Characteristics: Mechanical friction removes surface irregularities, resulting in a smooth and shiny finish.
Characteristics: Removal of burrs, sharp edges, or flash generated during machining.
Characteristics: Electrochemical process that forms an oxide layer on aluminum or aluminum alloys.
Characteristics: Deposition of a metal layer such as nickel, chromium, or zinc on the surface through electrolysis.
Characteristics: Use of chemical solutions to perform passivation, degreasing, phosphating, etc., on metal surfaces.
Characteristics: Application of protective or decorative layers by spraying, dipping, brushing, etc.
Characteristics: Physical or chemical methods to increase surface hardness of materials.
Characteristics: Heating, holding, and cooling processes to alter the internal structure of metals.
Materials Provided by Rapid Model
| Aluminum | Bronze / Brass | Titanium | Plastics | Steel / Titanium |
|---|---|---|---|---|
| Aluminum 6061-T6 | Copper C110 | Titanium Alloys (Grade 2) | ABS | Stainless Steel 303 304 316 17-4PH |
| Aluminum 7075 & 7075-T6 | Brass 3604 | Titanium Alloys (Grade 5) | POM | Alloy Steel 4140 1045 S50C |
| Aluminum 2024-T3 | Nylon | Tool Steel D2 H13 P20 O1 | ||
| Aluminum 5083 | PTFE PC | |||
| PEI / Ultem |
At Rapid Model,Our comprehensive quality management system includes First Article Inspection (FAI), process validation, and final inspection using advanced metrology equipment.
Our quality control capabilities include:
5-axis CNC Milling is an advanced CNC machining technology where, in addition to the three linear axes (X, Y, Z), the milling machine is equipped with two extra rotary axes (commonly referred to as the A and B axes, or A and C axes). This allows the cutting tool to machine the workpiece from almost any angle.
View CNC Milling servicesOur 5-axis machining center offers high-precision processing, capable of handling complex geometries with excellent accuracy and consistency.
Equipped with advanced technology and automation, it significantly reduces production cycles and lowers costs.
We support the machining of various materials, including metals and engineering plastics, meeting the precise requirements of industries such as aerospace, automotive, and medical.
Online CNC Quote
Finding CNC 5-axis machining solutions that satisfy customers.
High-precision CNC machining requires higher technical requirements, equipment, and materials, and usually demands more manual intervention and stricter quality control. All these factors contribute to higher costs, thus increasing the price.
At Rapid Model, we understand that price and quality are crucial factors that directly affect the progress of our clients' projects. Therefore, we are always striving to achieve results that satisfy our clients.
We offer factory prices to give back to our clients, while ensuring high-quality products. We are continuously innovating towards the direction of achieving both affordable prices and excellent quality.
View CNC machining services
Rapid Model's advanced 5-axis machining technology meets the demands of precision CNC parts manufacturing and delivers outstanding results.
5-axis CNC machining offers significant advantages in precision and complexity, allowing for the creation of intricate organic geometries that traditional 3-axis machines cannot achieve. With simultaneous movement across five axes, the machine can approach the workpiece from any direction, eliminating the need for multiple setups, making it ideal for machining high-precision, complex parts.
Additionally, 5-axis machining provides superior surface quality. Continuous tool contact maintains optimal cutting conditions, ensuring smooth surfaces and reducing the need for secondary operations. Complex parts can be completed in a single setup, drastically reducing production time and avoiding errors associated with repositioning.
Moreover, 5-axis machining optimizes tool positioning, reducing tool deflection and vibration, which extends tool life and ensures precision over long production runs. Overall, 5-axis CNC machining significantly enhances efficiency, shortens production cycles, and improves part quality, making it the ideal choice for manufacturing complex, high-precision components.
Find answers to common questions about our 5-axis CNC machining services.
Custom your 5-axis CNC machined parts online. Click the button and we will get back to you shortly.
